Model
Motors
Drive System
Bowl Type
Hopper Capacity
Output Capacity
Ship Weight
Dimensions
Shiiping Dimensions

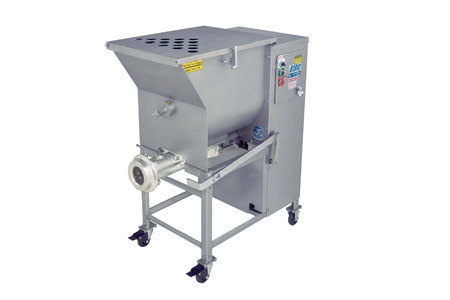

AFMG24
Standard: 5 HP, 208V, 60 Hz, 3 Phase
Tandem single reduction of oil bath speed reducers with heavy-duty mechanical clutch
Size 32, uses size 32 plate and knives
Up to 140 lbs.
Up to 68 lbs. / minute
5 HP: 669 lbs.
40 1/2" x 21 3/4" x 59 1/4"
47" x 35" x 55"
STANDARD EQUIPMENT
Splash guard, ring wrench, 8' cord, and plug on 3 phase only, no inlet hopper (solid tub), stainless
steel 2nd grind paddle with hook, ring wrench, receptacle for pneumatic footswitch,
operating and safety manual.
OPTIONS
Pneumatic or electric footswitch, size 32 plate and knife, stainless steel bowl, ring, and auger
(enterprise or unger), adjustable legs and casters with preventz additive, 7-1/2hp motor, meat lug
holder, right or left feed inlet with connections for tandem systems.
