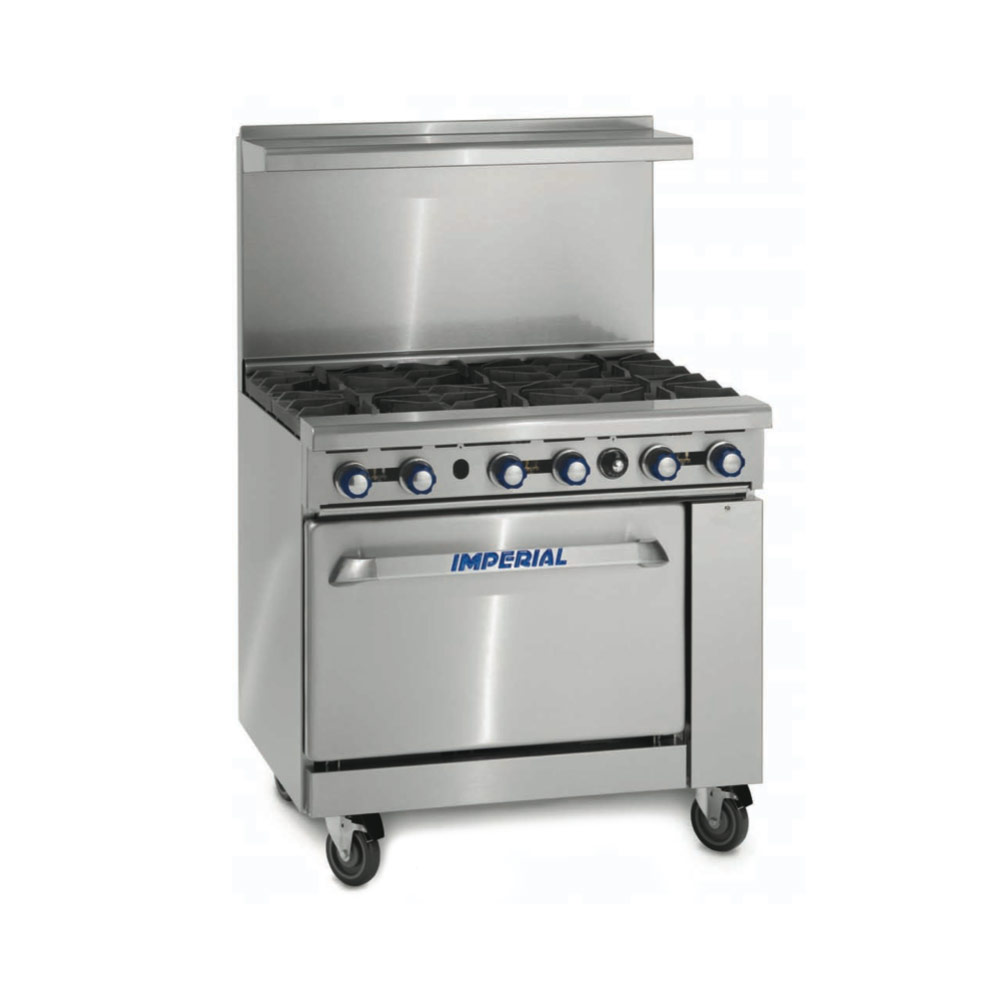

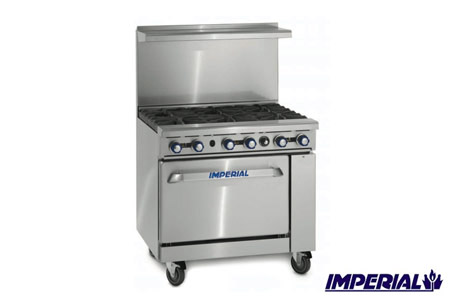

Imperial Range

Model
Width x Depth x Height
Weight

IR-6
31.2"5 x 36" x 36"
605 lbs.







Spec Sheet

Description

Imperial provides as standard many of the optional upgrades normally offered at a premium on other range lines. These ranges offer new features that provide optimal performance, value and reduce operating costs.

The 28,000 BUT burner heads lift off for easy cleaning and are available in four high performance styles: the anti-clogging burner head is standard. Burner heads are interchangeable to provide the flexibility of matching the burner style to the specific cooking need. An anti-clogging pilot design saves maintenance costs. For easy cleaning, the oven interior is porcelainized on all five contact surfaces. An innovative dual heat deflector system provides an even heat flow pattern throughout the 35,000 BTU oven. Cast iron top grates are designed in 12" x 12" sections to be removed easily and safety.

This item includes the following features:

• 28,000 BTU lift-off burner heads
• Anti-clogging pilot shield is designed into the top grate
• 26.5" deep oven accommodates 18" x 26" sheet pans front-to-back
• "U"- shaped burner and unique burner baffle
• Stainless steel front, ledge, sides, back guard and shelf
• 12" x 12" heavy-duty cast iron top grates remove easily and safely
• Top grate design allows pots to slide easily from section to section
• 5" wide stainless steel landing ledge provides a functional working area
• 20" wide oven is porcelainized on five contact surfaces for easy cleaning
• Oven door is removable for easy access, no tools are required
• One-year parts and labor warranty
• AGA and CGA design certified, NSF and CE listed
• LP conversion kit available.
